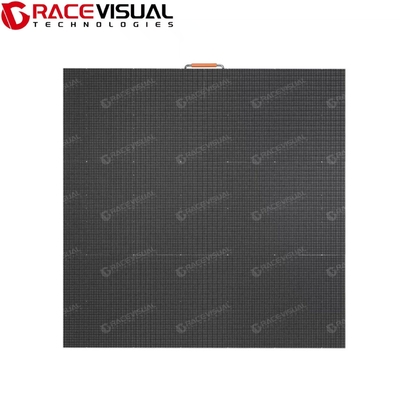

P5.7mm Outdoor LED Display Panel (960×960mm) – Weatherproof Fixed Advertising Screen for Commercial Billboards

The OA Series is a full-color commercial advertising billboard with an outdoor fixed digital LED display screen. It features a white design and supports full front or rear maintenance, with pixel pitch options of 4.4mm, 5.7mm, 6.67mm, 8mm, and 10mm.

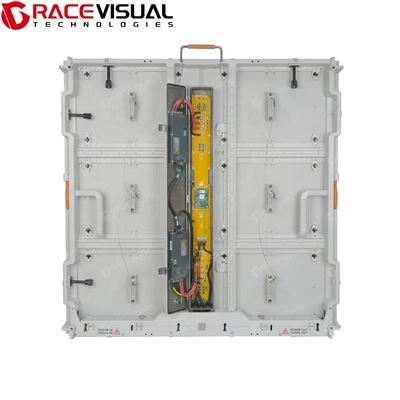

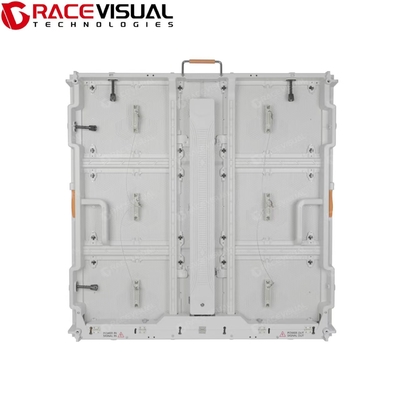

This series offers seamless splicing, high brightness, high contrast, and low energy consumption, with an IP66 protection rating for various outdoor applications. The exquisite cabinet design combines a white appearance with aluminum alloy material for better heat dissipation, while the concealed power and signal design ensures a clean, streamlined look. A safety rope design allows for easy and secure replacement, and the ultra-thin, lightweight structure simplifies installation. It supports both front and rear maintenance, equipped with dual handles and a drop-proof design for durability.

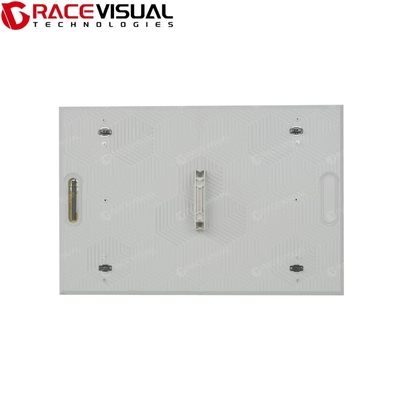

Specifications include module dimensions ranging from 480x320x14mm to 480x320x18mm, panel dimensions from 960x960x84mm to 960x960x88mm, and module resolutions like 108x72px, 84x56px, etc. Panel resolution options go from 216x216px to 96x96px, all in aluminum alloy material. It has 16-bit gray scale, a 15000:1 contrast ratio, 3840Hz refresh rate, and brightness up to 6000-10000 nits. With an expected lifetime of 100,000 hours, it operates at -10°C to 60°C, stores at -30°C to 60°C, and is certified by CCC, CE, ETL, RoHS.
